FOCAL POSITION AUTOMATIC MEASUREMENT SYSTEM
PRODUCT OVERVIEW

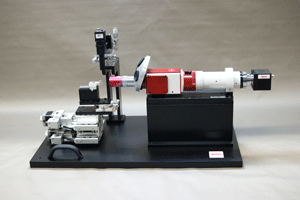

FOCAL POSITION AUTOMATIC MEASUREMENT SYSTEM powered by M-Scope type S

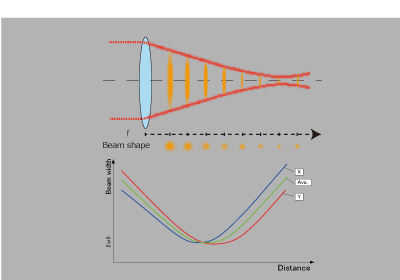

MEASUREMENT METHOD OF FOCAL POSITION AUTOMATIC MEASUREMENT SYSTEM
FEATURE
- Synos’ M-Scope type S, Sophisticated NFP Measurement Optics, is adopted as measurement optics
- Widely applicable for various optical beam pattern analysis
- Manual revolver to switch multiple objective lens
- Coaxial epi-illumination for image observation
- Possible to select suitable imaging detector in 400~1700nm spectral range
- for 400~1100nm : High Resolution CMOS Detector ISA071/ISA071GL
- for 950~1700nm : InGaAs High Sensitivity NIR Detector ISA041H2
- for 400~1700nm : InGaAs High Resolution NIR Detector ISA041HRA/ISA041HRVA
- Synos' Focal Position Measurement Software, dedicated software specially designed for focal position analysis
- All-in-one package system with PC for data processing, analysis software, sensor driver software, calibration data set for data analysis, and motorized stage control system. Possible to start up measurement system quickly after system introduction.
- High system expandability
- In combination with various positioning stages and measurement instruments, it is possible to build up automatic measurement system.
APPLICATION
- Focal position and beam waist measurement of micro lens and various lens module
- Focal position and beam waist measurement of various LD modules, fiber modules, etc.
SYSTEM COMPONENT SELECTION

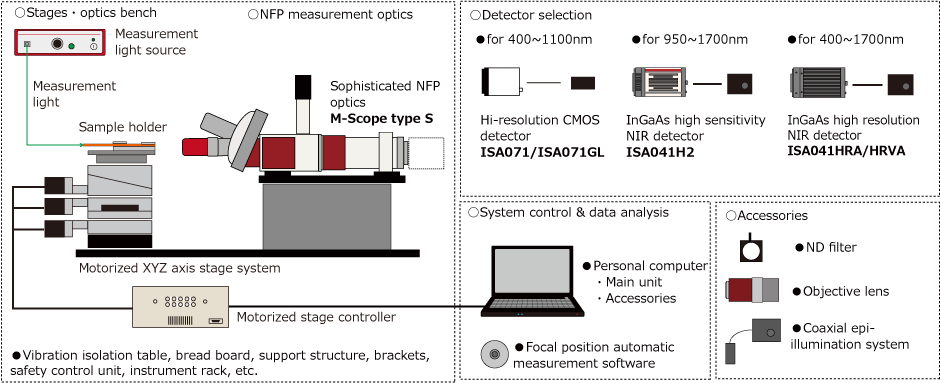

SYSTEM CONFIGURATION DIAGRAM
COMPONENT SELECTION
- NFP measurement optics
- Detector selection
- Optics bench, system platform
- Horizontal setting optics bench
- Vertical setting optics bench
- System platform, etc.
- Motorized stage system
- Motorized XYZ axis stage system
- Motor driver
- Motor controller
- Motor cable
- Sample fixture
- Sample fixture
- Stage system for sample adjustment, etc.
- System control and data analysis system
- Personal Computer for data processing (PC, I/F board etc.)
- Focal Position Measurement Software (image processing and data analysis, stage control system)
- Driver software for image sensor
- Calibration data set for NFP measurement
- Accessories, peripherals
- Anti-vibration table
- Shield box
- System rack
- Centralized power supply unit with safety interlock
OPTIONAL UNITS・ACCESSORIES SELECTION
- Option for M-Scope type S
- 2× Intermediate Lens Port MS-OP011-RL2
- Intermediate lens unit that doubles the overall magnification of the optical system. (up to 200× with 100× objective lens）
- 1/2× Intermediate Lens Port MS-OP011-RLH
- Intermediate lens unit that halves the overall magnification of the optical system.
- About optional units for M-Scope type S in details, please refer to here.
- Objective lens selection
- About objective lens selection, please refer to here.
- ND filter
- for visible（400~700nm）： NDF-5
- for NIR（700nm~1100nm）： NDF NIR-5
- for IR（1310nm~1550nm）： NDF IR-5
- About ND filter, please refer to here.
- Coaxial epi-illumination system
- About coaxial epi-illumination system, refer to here.
