OPTICS AND OPTICAL MEASUREMENT INSTRUMENTS
MODE-SELECTIVE LAUNCH OPTICAL SYSTEM M-Scope type ML
PRODUCT OVERVIEW
M-Scope type ML is mode-selective type launch optical system, possible to select specified angle (N.A.) component of launch light to the sample fibers by specially designed optical method. As M-Scope type ML has CCD camera system for observation, it is possible to observe the launch light position and launch condition directly.
It is widely applicable for optical characteristic evaluation and measurement of MMF, POF, polymer waveguide in OPCB substrate, and various multimode devices and modules under controlled underfilled launch condition.
Additionally, in combination with SYNOS' NFP measurement system, FFP measurement system, EF/EAF measurement system etc, highly advanced optical characteristic evaluation and measurement of various multimode device will be realized.
FEATURE
- Evaluation and measurement of various multimode device by changing launch light condition
- Select specified angle (N.A.) component of launch light to the sample fibers.
- Possible to select various kind of measurement light source such as LED, SLD, LD.
- Possible to select various lightsource
- Possible to select measurement wavelength by selection of light source
- Equipped camera system for coaxial direct observation make it possible to observe the launch light position and launch light condition onto the sample surface.
APPLICATION
- Evaluation and measurement under specific angle component launch condition of optical parameter of MMF(Multi-mode optical fibers), POF(Plastic optical fibers), etc.
- Evaluation and measurement under specific angle component launch condition of optical parameter of polymer waveguide in OPCB substrate.
- EF/EAF analysis of MMF (Multi-mode optical fibers), POF (Plastic optical fibers), etc.
SUMMARY OF SPECIFICATION
MAIN SPECIFICATION OF THE OPTICS
| N.A. of launch light | 0.1-0.65 (Sequentially variable) |
|---|---|
| Width of launch angle component | approx. 0.05/0.1（N.A. conversion value, extracted by mask） |
| Observation optical magnification | approx. 2.95倍 |
| Observation field of view | approx. 2.39mm x 1.79mm（using 1/1.8" CMOS detector） |
| Input fiber connector | FC connector |
SIMPLE STRUCTURE OF MODE-SELECTIVE LAUNCH OPTICAL SYSTEM M-Scope type ML
In case of mode-selective launch, sample fiber is launched by the light flux of only the specified N.A. In other words, mode-selective launch optics generate the launch light that has the specified incident angle only.

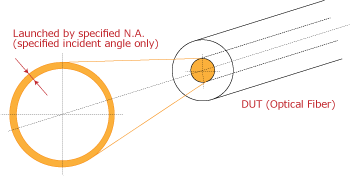

Image of mode-selective launch method is shown in the figure on the left. As shown in figure, launch light has only specified N.A. light flux (specified incident angle light flux), launch light has ring condition incident angle light flux.
COMPONENT
STANDARD COMPONENT OF M-Scope type ML
- M-Scope type ML (optics unit) : 1set
- Base plate for optics : 1set
- Aperture for launch light diameter adjustment : 1set
- Monochrome CMOS camera for coaxial observation : 1set
OOPTION
- Low Coherent 850nm SLD Light Source LSS002/850
- Low coherent, high power, high stability 850nm SLD light source unit for launch light.
- About light source, please refer to here.
- Neutral density filter
- About neutral density filters, please refer to here.
- Optics workbench for sample measurement
- Optics Bench For Fiber Measurement OP002-F3/OP002-F5
- Vertical Type Optics Bench OP002
- About optics workbench, please refer to here.
OUTSIDE DIMENSIONS OF M-Scope type ML
OUTSIDE DIMENSIONS OF M-Scope type ML
- Outside dimensions above is reference values. These values change as equipped option and detector. Please ask the drawing data in details if necessary.
