HIGH RESOLUTION DIGITAL CCD DETECTOR ISA011 (Discontinued, December 2020)

PRODUCT OVERVIEW

mscopetypec

ISA011 is the high resolution & high performance digital CCD detector for 400~1100nm wavelength range. It is suitable for optical beam observation and beam profile analysis of various optical device such as laser diodes, optical fibers, polymer optical waveguides for OPCB substrate, etc.

There are the following three types of detectors depending on the image sensor format and the number of pixels.

  • High Resolution Digital CCD Detector ISA011
  • 2/3" High Resolution Digital CCD Detector ISA011-01
  • 2/3" Ultra High Resolution Digital CCD Detector ISA011-03

In combination with Synos' optical measurement optics M-Scope series and Optical Beam Analysis Module AP013, it is widely applicable for various optical beam observation and beam profile analysis application in 400~1100nm wavelength range.

FEATURE

  • Digital CCD detector for 400~1100nm wavelength range, using 1/2inch, 140M pixels (1392 x 1040 pixel) CCD image sensor.
  • High output gradation of max. 12bit
  • Gigabit Ethernet I/F
    • Following Gigabit Ethernet standard as camera I/F, it is possible to acquire fine image only to connect to LAN device of notebook PC and desktop PC, not required special frame grabber board.

APPLICATION

  • Optical beam observation and beam profile analysis of various optical device in 400~1100nm spectral range.
    • NFP, FFP, beam profile analysis of laser diodes
    • NFP, FFP, beam profile analysis of various optical fibers
    • EF/EAF analysis of MMF (multimode optical fiber)
    • NFP, FFP, beam profile, intensity analysis of multimode optical waveguides such as polimer optical waveguides for OPCB substrate.
    • Other beam observation, beam profile, intensity analysis application for various optical device, module etc.
  • Input light observation and input position adjustment for various light detector device.
  • Other image observation, image processing application, etc.

SUMMARY OF SPECIFICATION

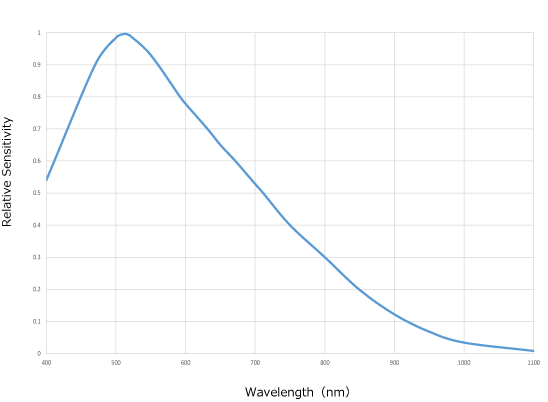

SPECTRAL SENSITIVITY
SUMMERY OF SPECIFICATION
MAIN SPECIFICATIONS OF CCD IMAGE SENSOR
Detector 1/2" high resolution digital CCD detector ISA011 2/3" high resolution digital CCD detector ISA011-01 2/3" ultra high resolution CCD detector ISA011-03
Sensor 1/2" interline CCD 2/3" progressive scan CCD 2/3" progressive scan CCD
Spectral range 400~1100nm
Pixel number 1392×1040 pixels/140M pixels 2448×2050 pixels/500M pixels
Sensor pitch (pixel size) 4.65×4.65μm 6.45×6.45μm 3.45×3.45μm
MAIN SPECIFICATIONS OF DETECTOR UNIT
Camera interface Gigabit Ethernet (1000BASE)
Frame rate 20fps 15fps
Exposure time 4μsec~60sec 4μsec~2sec
Gradation 8/12bit(12bit ADC)
Dynamic range 54dB or more(typical)
Camera mount C mount
Power consumption 4W or less 6W or less
Power supply 8-30 VDC
Operating ambient temperature +5℃ ~ +50℃

COMPONENT

STANDARD COMPONENT
  • Sensor head : 1
  • AC adaptor : 1

RELATED PRODUCT INFORMATION

OPTICAL MEASUREMENT, IMAGE PROCESSING&DATA ANALYSIS SYSTEM
  • Optical Beam Analysis Module AP013
    • Image acquisition, processing, and data analysis system for optical beam analysis. AP013 is composed of personal computer, SYNOS' Optical Beam Analysis Software Optometrics BA Standard, camera driver software, and calibration data set.
  • Synos' optical measurement optics M-Scope series
    • Various types of optics for various optical measurement application are prepared. About M-Scope series, please refer to here.
